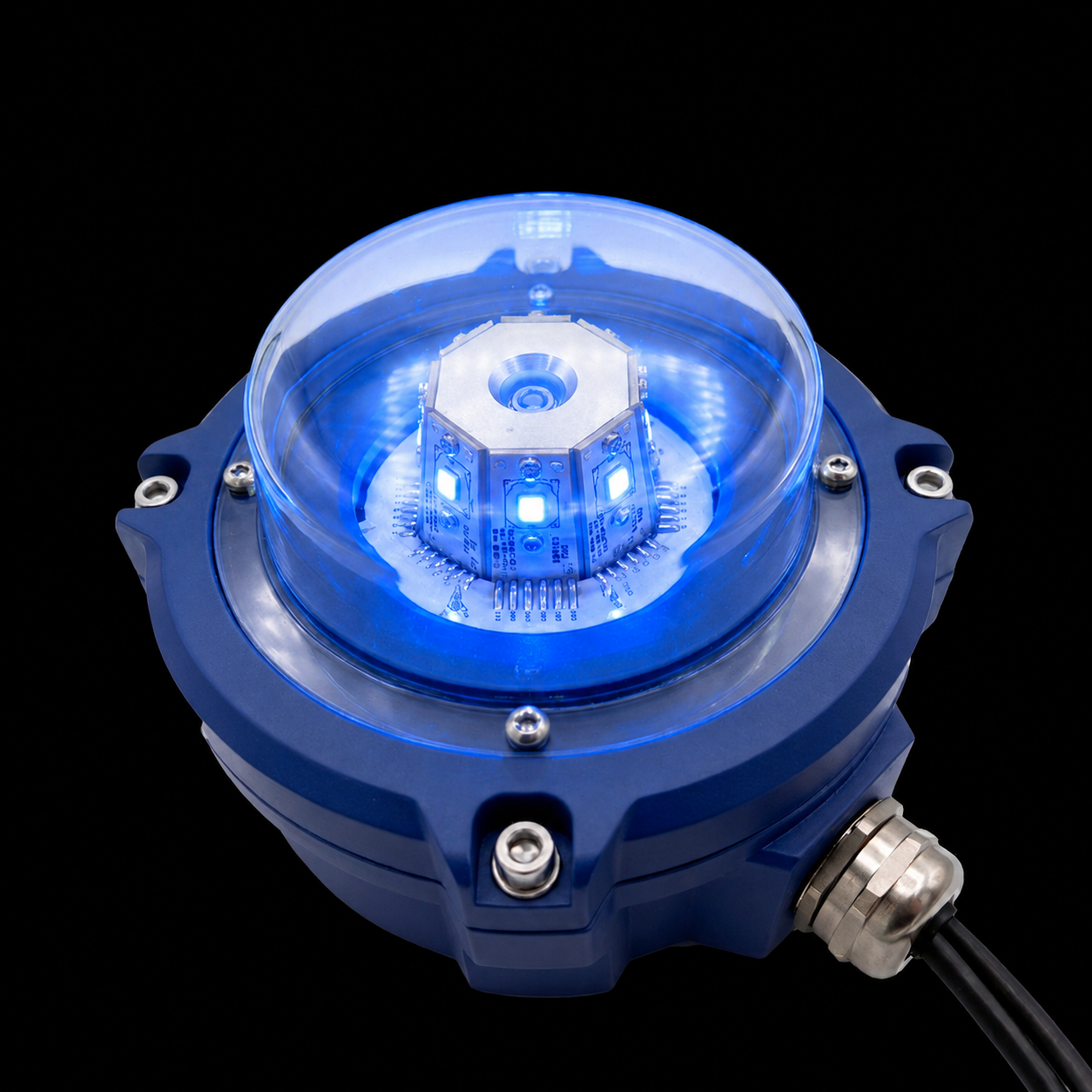

The Hardy Lighting LED Blue Taxiway Edge Light is a low-intensity aviation luminaire designed to clearly identify the edges of taxiways, apron taxi routes and designated aircraft movement areas.
Its highly visible blue LED output helps pilots distinguish taxiway boundaries from runways and other airfield lighting systems during night-time operations and reduced-visibility conditions.
Available in two intensity options—10 cd and 32 cd—the light provides consistent, omnidirectional blue illumination for a wide range of airport, airfield and aviation-facility applications.
The durable aluminium housing, UV-resistant finish and IP66-rated enclosure protect the internal components against dust, rain and demanding outdoor conditions. Its energy-efficient LED technology provides long operational life, reduced power consumption and minimal maintenance compared with conventional lighting systems.
Engineered in Europe, assembled in the UAE, every unit is inspected and photometrically tested before dispatch to ensure reliable performance and consistent light output.
Produces a highly visible blue signal that helps pilots recognise taxiway edges and distinguish taxiways from runways and other illuminated airfield areas.
Designed to provide 360° horizontal light visibility, allowing the signal to be recognised by approaching aircraft from different directions.
Available in 10 cd and 32 cd variants to suit different taxiway layouts, installation conditions and operational requirements.
Adaptable to different power-supply arrangements and aviation lighting control systems. It may be used as an individual unit or integrated into a coordinated airfield lighting network, subject to the selected configuration.
Manufactured with an aluminium housing and UV-stable powder-coated finish. The IP66-rated enclosure provides protection against dust, rain and powerful water jets.
Long LED service life and durable construction help reduce maintenance frequency, replacement costs and overall lifetime ownership expenses.
| Parameter | 10 cd | 32 cd |
|---|---|---|
| Application | Taxiway Lighting | Taxiway Lighting |
| Classification | Safe Area only | Safe Area only |
| Light Source | LED, steady burning | LED, steady burning |
| Colour | BLUE | BLUE |
| Light Intensity | 10 cd | 32 cd |
| Vertical Beam Profile | As per CAP 437 / ICAO | As per CAP 437 / ICAO |
| Colour Chromaticity | As per CAP 437 / ICAO | As per CAP 437 / ICAO |
| Enclosure | Marine-grade aluminium, powder coated | Marine-grade aluminium, powder coated |
| Mounting | Rigid, 4 × M8 | Rigid, 4 × M8 |
| Input Voltage | AC 85–264V / DC 10–26V | AC 85–264V / DC 10–26V |
| External Earthing | Up to 4 mm² | Up to 4 mm² |
| Ambient Temperature | −25°C to +60°C | −25°C to +60°C |
| Compliance | CAP 437 / ICAO Annex 14, Type B, FAA L-810 | CAP 437 / ICAO Annex 14, Type B, FAA L-810 |
| Cable Glands | 2 × M25 × 1.5 | 2 × M25 × 1.5 |
| Cable Outer Dimension | 11.1–20.0 mm | 11.1–20.0 mm |
| Consumption Without IR | 7 W | 9 W |
| Consumption With IR | 9 W | 12 W |
| Life Expectancy | 100,000+ hours | 100,000+ hours |
| IP Index | IP66 | IP66 |
| Salt-Spray Tested | 240 hours | 240 hours |
| Weight | 2.20 kg | 2.20 kg |
| Dimensions (L × W × H) | 180 × 180 × 122 mm | 180 × 180 × 122 mm |
| Packaging Dimensions (L × W × H) | 250 × 250 × 300 mm | 250 × 250 × 300 mm |
| Ordering Code Example | HAR-LIOL-SU-10-B-IR-AC-0 | HAR-LIOL-SU-32-B-IR-AC-0 |
Blue taxiway lights are used to mark the edges of taxiways, apron routes and aircraft movement areas. They help pilots clearly distinguish taxiways from runways and other airfield zones during night-time and low-visibility operations.
The Hardy Lighting Blue LED Taxiway Light is available in two intensity options:
10 cd
32 cd
The blue taxiway light is designed for steady-burning operation, providing continuous blue illumination to clearly identify taxiway boundaries.
The LED light source has an expected operational life of more than 100,000 hours, helping reduce replacement frequency and maintenance requirements.
Yes. The unit has been tested for 240 hours of salt-spray exposure, making it suitable for coastal, offshore and other corrosive environments.
The product is designed and engineered in Europe and assembled in the UAE. Each unit is inspected and tested before dispatch to ensure reliable performance.
